Autel MaxiCOM MK808TS Full System Auto Diagnose and TPMS Relearn Tool with Complete TPMS and Sensor Programming

stars, based on 0 reviews
$645.00 piece
items available
SKU:      Weight:3kg
  • Free worldwide shipping
  • Secure payments
  • Return and refund guarantee
  • Carbon neutral
Contact Us
AutelCartool


Autel MK808TS Diagnostic Scanner Android-Based with Oil Reset/EPB/BMS/SAS/DPF/IMMO plus the Complete TPMS Service + 1 year free update + 1 year warranty

Autel MK808TS, as an advanced Android-based tablet diagnostic tool featuring all-around fixes of Oil Reset/EPB/BMS/SAS/DPF/IMMO and the comprehensive TPMS service, is the ideal combination of MK808 and TS601 for DIY enthusiasts and auto repair stores to get faster and more accurate diagnosis.


Autel MaxiCOM MK808TS - Wireless Diagnoses

MP808TS = MaxiCOM MK808 + TS601

Multilingual (If you need language except English, please give me Serial Number after you receive parcel, we will help you authorize language)

English, Traditional Chinese, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian

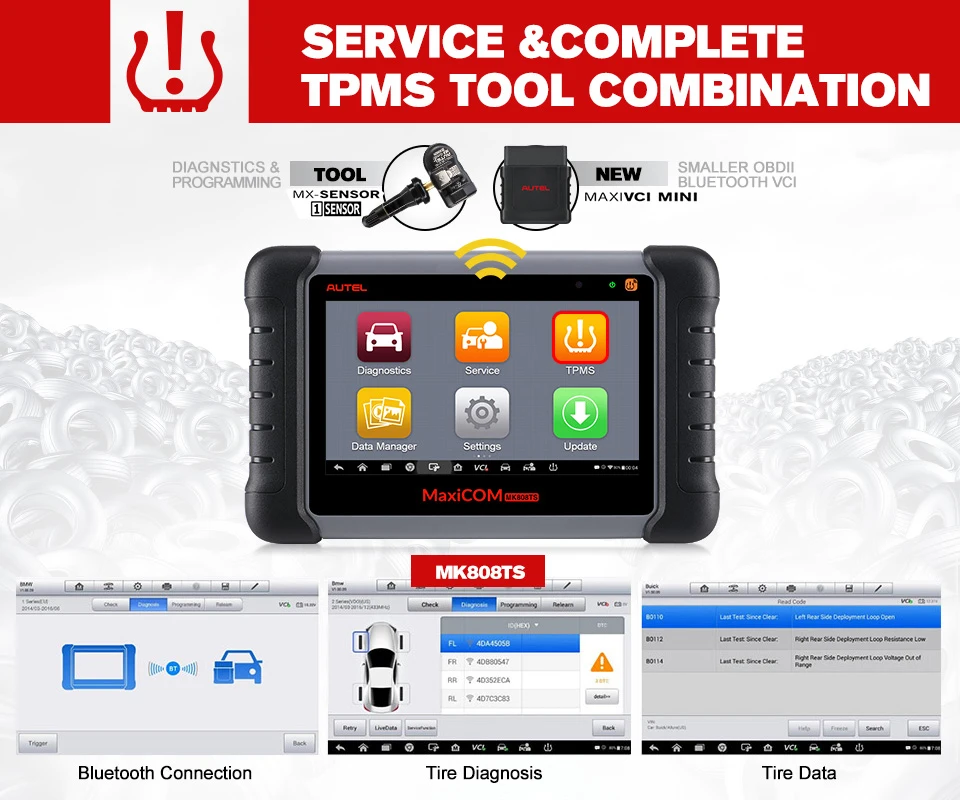

COMPLETE TPMS FUNCTIONS

Autel MK808TS is specially designed to provide the complete TPMS service as MaxiTPMS TS608 including TPMS health check, programming and relearn etc., for helping technicians to quickly find out the faulty sensor and turn off the MILs related.

1.Activate all known TPMS sensors and read sensor status, Activate 98% of all known TPMS sensors;

2.Diagnose ECU for complete TPMS health check with DTC description;

3.Read DTCs from ECU and erase DTCs;

4.Program MX-Sensors by copying original sensor IDs or creating new IDs randomly;

5.On-tool relearn procedure and wide OBD relearn coverage;

6.Toolkit, special TPMS functions;



Complete TPMS Functions for Boost in TPMS Work

MK808TS, being available to activate 98% of all-known TPMS sensors, provides the most advanced TPMS diagnosis and the most comprehensive OBD relearn coverage for a complete TPMS health check, allowing technicians to solve TPMS related problems with a series of quick and effective operations:

1. TPMS Check: The Check function allows users to activate TPMS sensors to view sensor data – sensor ID, tire pressure, tire temperature, battery condition and sensor location.

2. TPMS Diagnosis: The Diagnosis function is used to check the status of the TPMS system. This function requires connection with the test vehicle.

3. Sensor Programming: The Programming function allows users to program the sensor data to the MX-Sensor and replace faulty sensor with low battery life or the one that is not functioning. There are four options available when programming MX-Sensor:
1).Copy by Activation - Once the sensors mounted on the vehicle have been triggered and the sensor information displayed on the tool, the Copy by Activation can be used to program a new MX-Sensor.
2).Copy by OBD - By using this function, the tablet will program the sensor IDs retrieved from the ECU of the test vehicle to the new MX-Sensors.
3).Copy by Input - The Copy by Input allows users to program a new MX-Sensor with the ID of an original TPMS sensor.
4).Auto Create - The Auto Create function is used to automatically create a random sensor ID to program a new MX-Sensor.

4. TPMS Relearn: This function is used to write the newly programmed sensor IDs into the vehicle ECU for sensor recognition. There are three ways for Relearn: Stationary Relearn; Active Relearn; OBD Relearn.

5. TPMS by OEM Part No.: If the sensor’s OEM part number is known, this function is an efficient method to activate and program MX-Sensors.


Exceptional OE-level system coverage for all electronic systems

MK808TS is a full system diagnostic scanner that can quickly test every system module’s status and make faster diagnosis & maintenance via reading/clearing codes as well as viewing live data etc., but only costs you a few minutes to finish full scanning. You can learn to perform complex diagnostic functions with that will give you a lot more power over the ins and outs of your car to figure out what is going on with your modern computerized vehicle, so that you can get it fixed and get back on the road in due time.
Brief introduction of its capabilities in full systems diagnoses as follows:

1. For Engine System: Diagnostic tool MK808TS can help detect the engine ignition, fuel injection, air and fuel ratio, and exhaust emission conditions in Engine system to enhance vehicle performance, save energy and reduce exhaust emission.

2. For Transmission: It makes great sense in the safety driving when your car is slipping or difficult to shift, this diagnostic tool can figure the problems out via reading codes in the Transmission system, or check the health status via live data viewing.

3. For ABS System: Diagnosing an ABS problem should always start with a visual inspection of all brake components, next you will need to retrieve ABS codes to tell you where the problem is, and this is what this diagnostic does for you.

4. For SRS System: SRS, safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and this diagnostic tool can detect every electronic parameter to check its health status.

6. To diagnose Brake System if you feel the brake pedal is mushy and notice unusual odor or noise, etc. A properly operating brake system is critical to ensure safe vehicle control and operation;

7. To diagnose Emission System if the system is affected by vehicle age or poor quality fuel. A good emission system reduces harmful gases to a large degree and protects you from being fined;

8. To diagnose Fuel system if vehicle won’t start or “Check Engine” light is illuminated. Check car’s fuel system regularly ensures the best performance of your car with the lowest emissions;

9. To diagnose Transmission if your car is slipping or difficult to shift. The system plays an important part in the overall performance of your car;

10. To diagnose Wiper System if you observe chattering or streaking wiper. If the car is not regularly checked, the accident might happen because you can’t see clearly;

11. To diagnose Light System if you see rapid signal blinking or dimming lights. And many more ...


28 ADVANCED SERVICE FEATURES

As an advanced diagnostic tool, MK808TS has all kinds of services accessible for complete diagnoses and maintenance. You can quickly access to the vehicle systems within this function.

You can find commonly used reset functions in the reset menu, and other special functions in the car brand diagnostic softwares menu.

1. Oil Reset Service

allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2. Electronic Parking Brake (EPB) Service

has a multitude of usages to maintain the electronic braking system safely and effectively. The applications include deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement,

3.Battery Management System (BMS) Service

allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4. DPF service

Particle Filter Test It is advisable to carry out a series of particle filter tests as a result of constant DPF regeneration, such as checking oil level, oil change interval for diesel contamination, swirl flaps, backpressure sensors and particle filter soot remains.

5. Adjusting injectors

start fuel delivery matching, adjust the injection volume,adjust the injector rate for individual cylinders

6. Steering Angle Sensor (SAS) Service

Steering Angle Sensor Calibration permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM. In addition, the vehicle identification number is also read from the instrument cluster and stored permanently in the steering angle sensor EEPROM

7. Immobilizer (IMMO) Service

is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8. ABS Bleeding

Get a firm brake pad after air exhaustion.

9. Tire Pressure Monitor System Reset

Relearn TPMS sensors so that new sensors can be recognized by ECU.

10.Tooth Learning

Finish tooth learning after changing crankshaft in the car engine, so the new part can be used.

11.Injector matching

Write the new injector numbers into the ECU for accurate communication and injection control.

12. Headlamp

13. Suspension

14. CHG tire size

15. TEC learn

16. WIN DR ROOF

17. Seats

18. Odometer

19. Lang change

And Many More...


Widespread Coverage for Multiple Vehicle Models

The best part about the MK808TS is its wide vehicle coverage. It is compatible with most 1996 US-based vehicles or newer, and 2000 EU-based vehicles or newer. In other words, it supports a wide range of modules that can be scanned for codes as well as the ability to display values and sensor data for the specific module scanned.
The supported brands include:
Asia:
For Acura, For Daewoo, For Holden, For Honda, For Hyundai, For Infiniti, For Isuzu, For Kia, For Lexus, For Mazda, For Mitsubishi, For Nissan, For Scion, For SsangYong, For Subaru, For Suzuki, For Toyota, For BYD, For ChangAn, For Chery, For DFM, For FAW, For Foton, For Geely, For GreatWall, For Haval, For JAC, For Lifan, For Luxgen, For MG, For Zotye

Europe:
For Abarth, For Alfa-Romeo, For Alpina, For AstonMartin, For Audi, For Bentley, For Benz, For BMW, For Citroen, For Dacia, For Ferrari, For Fiat, For Jaguar, For Lamborghini, For Lancia, For LandRover, For Lotus, For Maserati, For Maybach, For Mini, For Opel, For Peugeot, For Porsche, For Renault, For Rolls-Royce, For SAAB, For Skoda, For Smart, For Volvo, For Volkswagen

USA:
For Buick, For Cadillac, For Chevrolet, For Chrysler, For Dodge, For Ford, For GMC, For Hummer, For Jeep, For Lincoln, For Mercury, For Oldsmobile, For Pontiac, For Saturn, For Tesla

Australia:

For HSV

WIRELESS BLUETOOTH MAXI-VCI MINI

The latest compact size Wireless Bluetooth MaxiVCI Mini OBDII connector can transmit vehicle data to the tablet without a physical connection. Enhanced wireless bluetooth connectivity between the tablet and VCI device allows greater service mobility and easier TPMS sensor interaction while the tablet is still connected to the vehicle for data transmission.


Advanced Hardware

1. Android 4.4.4-based tablet diagnostic tool greatly improves the working efficiency with performance and power optimized 1.5GHZ Cortex-A9 Processor.

2. 7 inch touchable LCD screen with 1024*600 resolutions offers ultra-clear visuals of the diagnostic data, making it easy to navigate and read codes.

3. 1GB RAM DDR3 / 32GB On-Board ROM Memory is not only an extended storage space but a way to reduce the possible issue of slow response.

4. Built-in 5000 mAh battery provides up to 7 hours continuous battery life for giving you a worry-free operation experience.

5. MaxiVCI Mini is equipped for connecting between the diagnostic tablet and DLC for wirelessly vehicle data transmission via the fast and reliable Bluetooth 2.1 EDR, allowing technicians to have complete freedom to move anywhere in the repair shop when the VCI is connected to the car.

Specification

Recommended Use Indoor
Operating System Android™ 4.4.4, KitKat
Processor Cortex-A9 quad-core processor (1.4 GHz)
Memory 32GB
Display 7-inch LCD capacitive touchscreen with 1024x600 resolution
Connectivity Mini USB 2.0 USB 2.0
Wi-Fi
HDMI Type A
Micro SD card slot (supports up to 32GB)
Sensors Light sensor for brightness auto adjust
Audio input/output Input: N/A
Output: Beep
Power and Battery 3.7 V/5000 mAh lithium-polymer battery
Charges via 5 VDC power supply
Tested Battery Life Around 7 hours of continuous use
Battery Charging Input 5 V/1.5 A
Power Consumption 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp 0 to 55°C(32 to 131°F)
Storage Temp -20 to 60°C (-4 to 140°F)
Operating Humidity 5% - 95% non-condensing
Dimensions(WXHX D) 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Net Weight 885 g (2.31 lb.)
Protocols ISO9141-2,ISO14230-2,ISO15765,K/L-Line,Flashing Code,
SAE-J1850 VPW,SAE-J1850PWM,
ISo11898(Highspeed,Middlespeed,Lowspeed and Singlewire CAN,fault-tolerant CAN)
SAE J2610,GM UART UART Echo Byte Protocol
Honda Diag-H Protocol,TP2.0,TP1.6

PACKAGE LIST

1*MaxiCOM MK808TS
1*MaxiVCI Mini
1*Power Adapter
1*Strap
1*Mini USB Cable
1*Quick Reference Guide
1*Strap Quick Guide
1*User Manual

Contact US:

Email: sales@autelcartool.com

Whatsapp: +86 15171416490


Buy from Autelcartool



Brand Name:
Autel
Special Features:
Wifi/Bluetooth Connection
Item name::
Autel MaxiCOM MK808TS
Operating System:
AndroidTM 4.4.4,Cortex-A9 quad-core processor (1.4 GHz),32GB,7-inch LCD
Software Update:
1 Year free update online
Special Functions:
IMMO (immobilizer), Oil Reset, EPB, SAS, BMS,DPF,TPMS
Warranty:
1 year worry-free warranty
